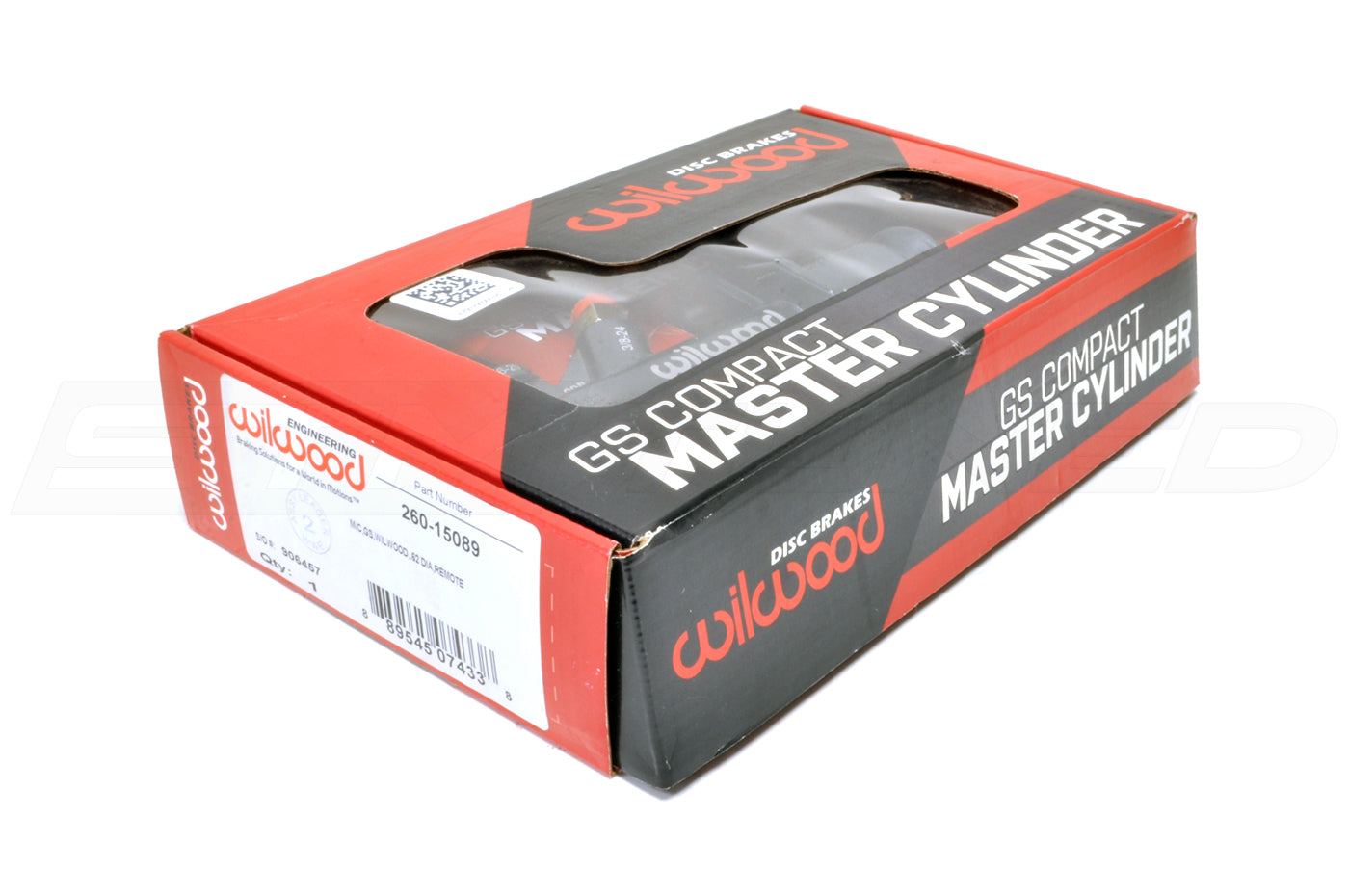

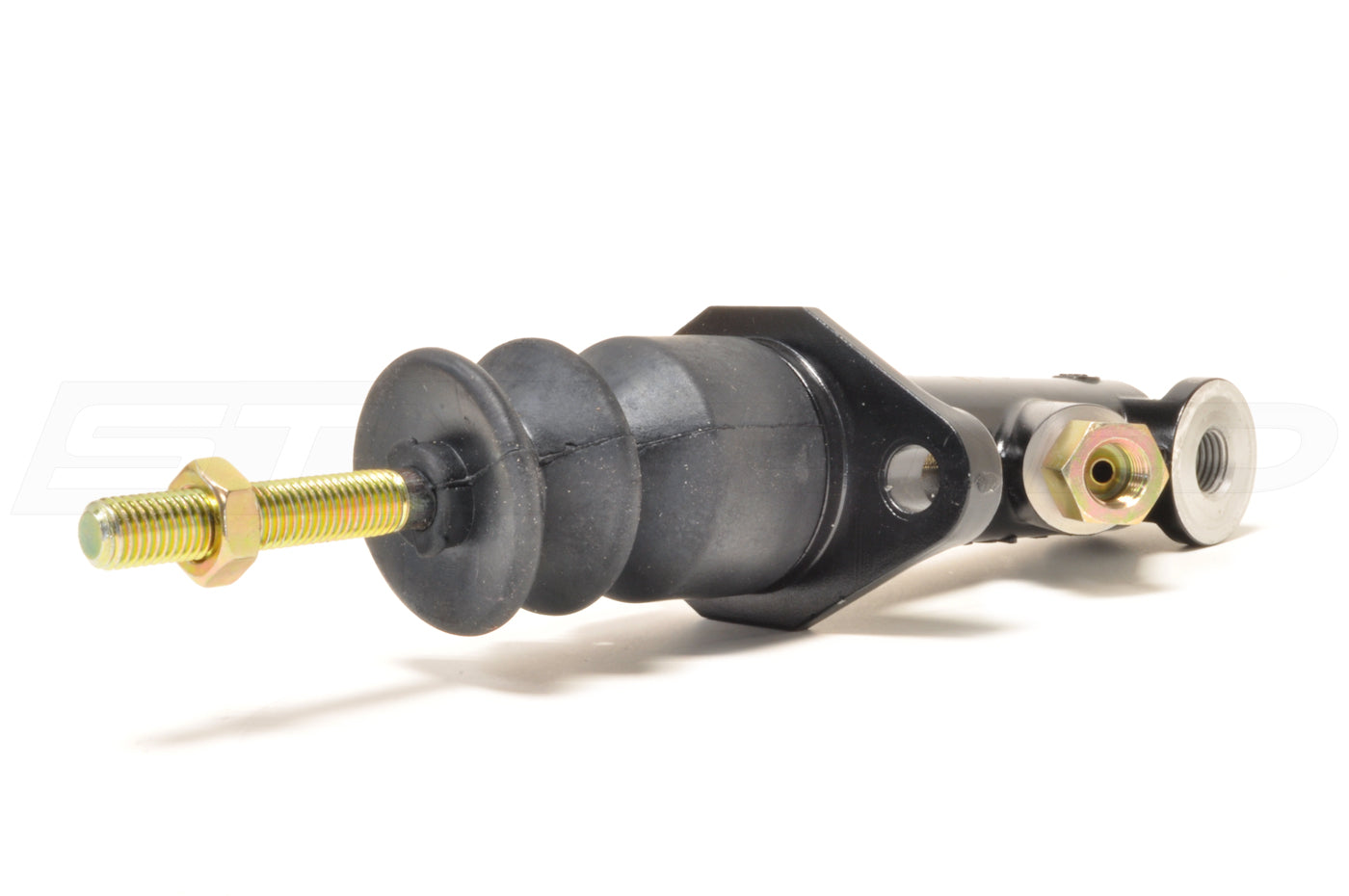

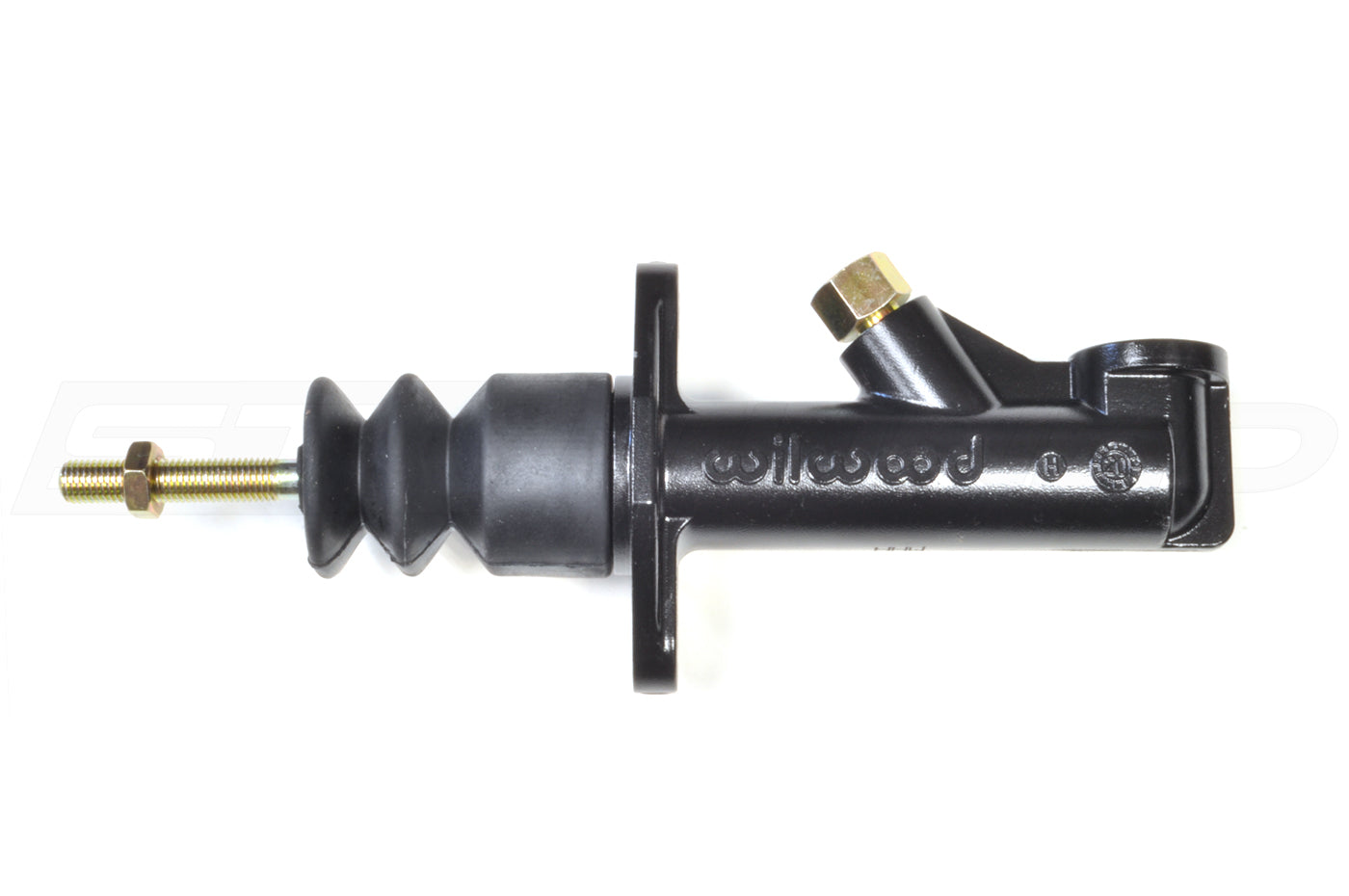

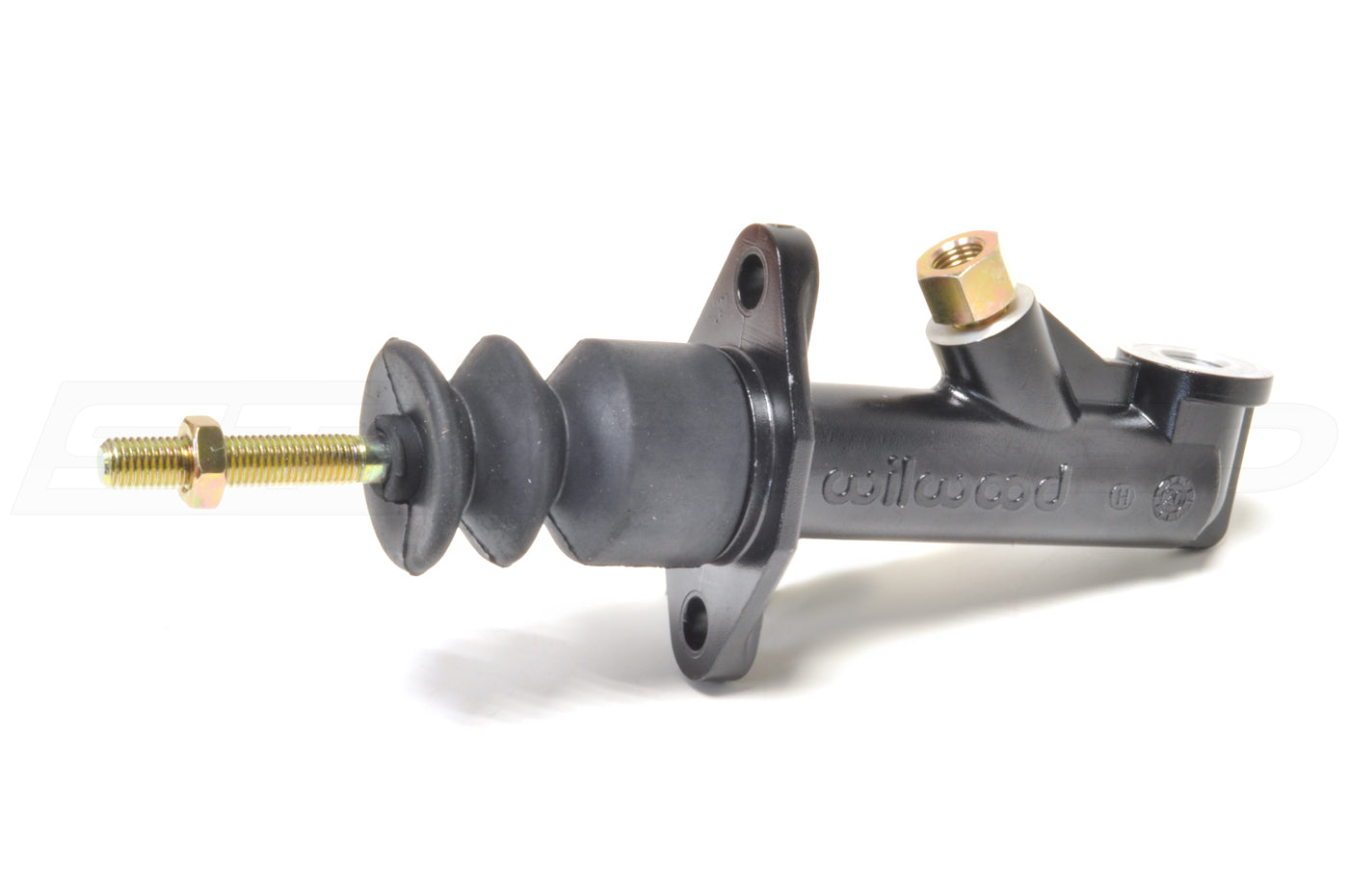

Wilwood GS Compact Remote Master Cylinder (260-15089)
Wilwood GS Compact Remote Master Cylinder (260-15089)
Regular price
$75.06 USD
Regular price
Sale price
$75.06 USD
Unit price
per
Couldn't load pickup availability
Wilwood GS compact remote master cylinder features a high pressure, rebuildable design with die cast aluminum body with a protective e-coat finish. Standard 7/16-20 threaded inlet. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release.
Vehicle Fitment:
Universal Application
Purchase Includes:
(1) Master Cylinder
Install PDF:
260-15091 Data Sheet
Vehicle Fitment:
Universal Application
Purchase Includes:
(1) Master Cylinder
Install PDF:
260-15091 Data Sheet
| Master Cylinder Dimensions: | |
| Bore Size | 5/8" |
| Area (in²) | 0.310 |
| Stroke | 1.25 |
| Volume (cu in) | 0.39 |
| Master Cylinder Description: | |
| Type | Single Outlet |
| Outlets | 1 |
| Material | Aluminum |
| Finish | Black E-coat |
| Reservoir: | |
| Res Type | Remote |
