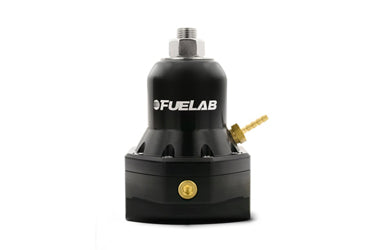

FUELAB 565 Series High Flow Fuel Pressure Regulator

Description:
FUELAB 565 Series Fuel Pressure Regulators have all of the same great features as the 515/525 Series with extreme capacity. Utilizing a massive 1/2" return orifice and -10AN ports, these regulators hold no bounds.

With the bypass capability over 5 GPM at 5 PSI, this new regulator can handle blow through carbureted applications well over 1800HP, and for EFI applications using belt driven fuel pumps; even further (with a flattened regulation slope).

Regulator comes in four different pressure ranges covering applications between 4 and 80 PSI. Available in black only.

• Two -10AN inlet ports and one -10AN return port
• 1.75" sized diaphragm with 1/2" return orifice
• Gasoline, diesel, methanol, and ethanol fuel compatible
• Billet Aluminum with anodize per military MIL-A-8625, Type II
• Fine thread pitch for precise pressure adjustment
• Versatile mounting bracket and stainless steel hardware
• 1/8” NPT gauge port with plug for external pressure gauge
• 1/8” NPT pressure reference port with barbed fitting
• Backed by a 2-year limited warranty

FUELAB Technical Data Sheet:
Click to view PDF
