MOST Bus BMW CIC CarPlay & AA Interface with OEM microphone support

MOST Bus CarPlay & Android Auto Interface with OEM microphone support

Model No: P2000-CICMM
The brand new Mr12Volt P2000 MM series now support your favorite in car OEM microphone.

Compatible for BMW Radio with CIC, CIC MID (8.8"/6.5")

• 1 Series - E81, E82, E87, E88
• 3 Series - E90, E91, E92, E93
• 5 Series - E60, E61, F10, F11, F07
• 6 Series - E63, E64
• X1 - E84
• X3 - F25
• X5 - E70
• X6 - E71
• Z4 - E89
• 7 Series - F01, F02

Important compatibility notes:

*** A CD changer (CDC) must have been installed, or the CDC feature has been enabled in order to use this product

*** the BMW must have OEM Bluetooth handsfree installed in order for this product to use the OEM microphone, otherwise an external microphone is required (not included)

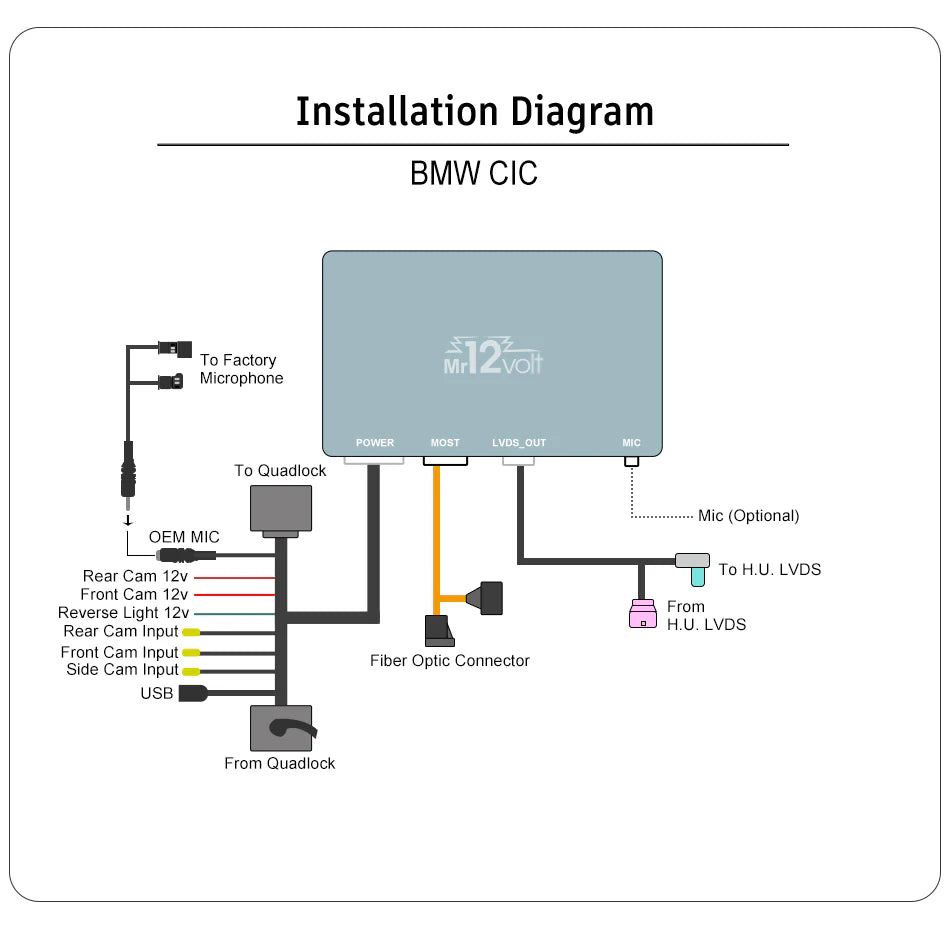

Installation video:

 https://youtu.be/9jFJFQrq2Yk?si=nW_nqu0wUoIlvQap

Highlight Features:

• Runs on MOST BUS with High-End sound quality
• Supports OEM microphone
• Wireless & Wired Apple CarPlay, Google Android Auto
• Wireless MirrorLink
• Bluetooth Hands free & Audio Streaming
• USB Video & Music Playback
• Reverse/Front/Left/Right camera Input

• Supports Apple Lossless music streaming
• Highly Customizable 15 bar DSP Equalizer

How it works

• If a CD changer is fitted in the car, it must be disabled (Bypass Loop connector is included in the package to disable CD changer)
• Mr12volt is selected through "CD" button and played through CD changer channel
• Supports aftermarket cameras up to AHD720
• Supports the integration of OEM microphone ( a Mic splitter is included in the package)

P2000 supported multimedia type (High performance video and audio codec)

• Decoding H.264 (Baseline and Main High Profile, Level 1-4.2)  30fps @1080p
• Decoding VC-1 (Simple Main Profile, low, medium and high levels. Advanced Profile, levels 0-3) 30fps @1080p
• Decoding MPEG1/2/4 (Simple Profile, levels 0-6. Main Profile, low, medium and high levels. ASP, levels 0-5) 30fps @1080p
• Decoding Real-Video 8/9/10 30fps @1080p
• Decoding VP6/7/8 (VP6.0/1/2, VP7 version 0-3, VP8 version 2(WebM)) 30fps @1080p
• Decoding DivX (DivX3/4/5/6) 30fps @1080p
• Decoding H.263 (Profile 0, levels 10-70.) 30fps @720x576
• JPEG codec (Baseline interleaved) 8176x8176
• Support *.mkv, *.mp4, *.avi, *.wmv, *.rmvb, *.rm, *.mpg, *.mpeg, *.ts, *.dat, *.asf, *.flv, *.vob, and so on file format
• Multi Format Audio CODEC (MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR, and so on)

Related Topics:

How to mirror to P2000 from phone

Additional Technical Data:

• Operating Temperature: -20 - +80 degree centigrade
• DAC resolution: 18Bit
• MP3 kbit: 8 - 384kbit
• Voltage: 10 - 14.6V DC
• Operation Current: 450mA (700mA when charging mobile phone)
• S/N ratio: 95dB
• Total Harmonic Distortion: 0.1%
• Frequency Response: 20Hz - 20KHz
