TiAL Sport QRJ Blow Off Valve
TiAL Sport QRJ Blow Off Valve
Regular price
$244.89 USD
Regular price
Sale price
$244.89 USD
Unit price
per
Couldn't load pickup availability

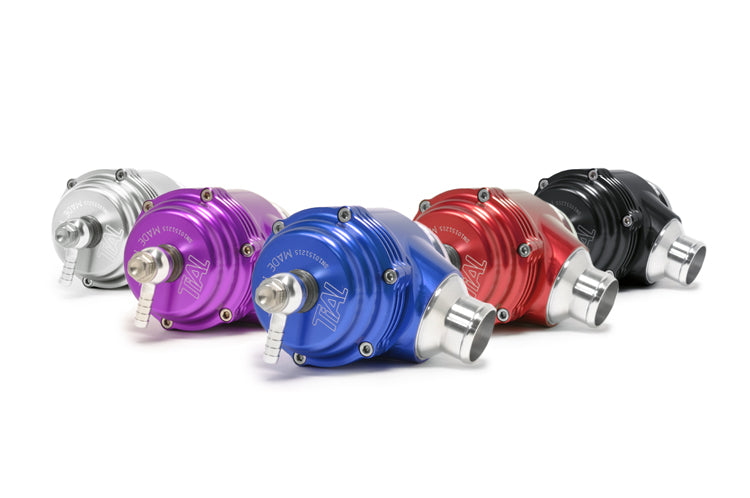

Genuine TiAL QRJ is the latest boost control valve designed with the needs of high performance recirculating systems in mind. The QRJ features a new body design, compact installation envelope, high-flow capacity, and configurable inlet and outlet ports. Available in all 5 TiAL colors silver, red, blue, purple and black.
The QRJ will come with your chosen inlet fitting and outlet fitting and standard, banjo air fitting.
Shipping Times: 1-2 Weeks
We try to keep the most popular kits in stock, but if you need something quick and want to confirm, just give us a call directly!
Inlet and Outlet Ports:
The QRJ Body features a thread-on design to accept inlet and outlet ports of your choosing. Both the inlet and outlets are the same thread size, so they are interchangeable when applicable.
Spring PSI:
Includes the 3 psi spring.
1.5 psi spring is also available - please call to order.
High Performance Diaphragm:
The QRJ features TiAL's high performance diagram. Long cycle life, zero leakage & zero breakaway friction. For fast and reliable boost control.
Includes:
(1) QRJ Body Assembly (With 3 PSI Spring)
(1) TiAL Air Fitting
(1) Thread-On Inlet Flange
(1) Thread-On Outlet Flange
Specs & Features:
• The body and all internal components are CNC-machined from 6061 aluminum alloy.
• Features a large 1.50 in (38.5mm) valve.
• Optional configurations of Hose and or V-band connections for the inlet and outlet ports.
• The valve seat seal utilizes a Viton O-ring that is clamped in place to prevent the possibility of sticking to the seat and pulling out. The valve stem and guide are Teflon-lubricated, hard anodize-coated for wear resistance.
• The QRJ comes with a TiAL machined aluminum banjo-type air fitting and bolt, with over-sized 10mm hose barb for quick actuator response.
• Color anodized aluminum options (Silver, Red, Blue, Purple, Black).
• Multiple inlet and return port options for many install configurations.
• Internal return spring pressure tuned for fastest response. Custom spring options are available for other configurations.
Inlet & Outlet Fitting Options:
The QRJ will come with your chosen inlet fitting and outlet fitting and standard, banjo air fitting.
Shipping Times: 1-2 Weeks
We try to keep the most popular kits in stock, but if you need something quick and want to confirm, just give us a call directly!
Inlet and Outlet Ports:
The QRJ Body features a thread-on design to accept inlet and outlet ports of your choosing. Both the inlet and outlets are the same thread size, so they are interchangeable when applicable.
Spring PSI:
Includes the 3 psi spring.
1.5 psi spring is also available - please call to order.
High Performance Diaphragm:
The QRJ features TiAL's high performance diagram. Long cycle life, zero leakage & zero breakaway friction. For fast and reliable boost control.
Includes:
(1) QRJ Body Assembly (With 3 PSI Spring)
(1) TiAL Air Fitting
(1) Thread-On Inlet Flange
(1) Thread-On Outlet Flange
Specs & Features:
• The body and all internal components are CNC-machined from 6061 aluminum alloy.
• Features a large 1.50 in (38.5mm) valve.
• Optional configurations of Hose and or V-band connections for the inlet and outlet ports.
• The valve seat seal utilizes a Viton O-ring that is clamped in place to prevent the possibility of sticking to the seat and pulling out. The valve stem and guide are Teflon-lubricated, hard anodize-coated for wear resistance.
• The QRJ comes with a TiAL machined aluminum banjo-type air fitting and bolt, with over-sized 10mm hose barb for quick actuator response.
• Color anodized aluminum options (Silver, Red, Blue, Purple, Black).
• Multiple inlet and return port options for many install configurations.
• Internal return spring pressure tuned for fastest response. Custom spring options are available for other configurations.
Inlet & Outlet Fitting Options:
| Part Number: | Description: | Notes: |
| 004812 | 1" Thread-On Flange | Outlet Only |
| 004794 | 29MM Thread-On Flange (For most R35 GTR) | Outlet Only |
| 004881 | 34MM Thread-On Flange (For Evo IV-X) | Inlet or Outlet |
| 004806 | Discharge Outlet (Non-Recirculated) | Outlet Only |
| 004781 | Q/QR V-Band Flange Adapter Threads onto your QRJ to attach to an existing Q/QR vband flange on your intercooler piping. Uses this clamp (001624). Available separately. | Inlet Only |
